TURINA
TURINA is a highly energy-saving luminaire that is an excellent alternative to traditional raster lighting. The luminaire combines high luminous efficiency with a minimalistic, classic design. The lowered glare parameter ensures comfortable working conditions.
Exemplary applications:
Public utility facilities, offices, conference rooms, classrooms, corridors.
SPECIFICATION
| Name | Power [W] | Luminous flux | Protection class | IP | IK | CRI | CCT | Luminous efficiency up to |
|---|---|---|---|---|---|---|---|---|
| TURINA | 34 | 4 080 lm | II | IP20 | IK03 | >80 | 4000K | 120 lm/W |
| Installation: | directly in the ceiling construction / surface mounted |
| Supply voltage: | 230V AC / 50-60Hz |
| Ambient temperature range: | 0°C … +40°C |
| Lifetime L80B50: | 60 000h |
| Power factor: | >0,9 |
| Housing: | powder coated stell sheet |
| Warranty: | 5 years |
SIZE
EXTERNAL DIMENSIONS (MM) / WEIGHT
| Name | L/W | H | G | Weight |
|---|---|---|---|---|
| TURINA | 595 | 40 | 12 | 2,1 kg |

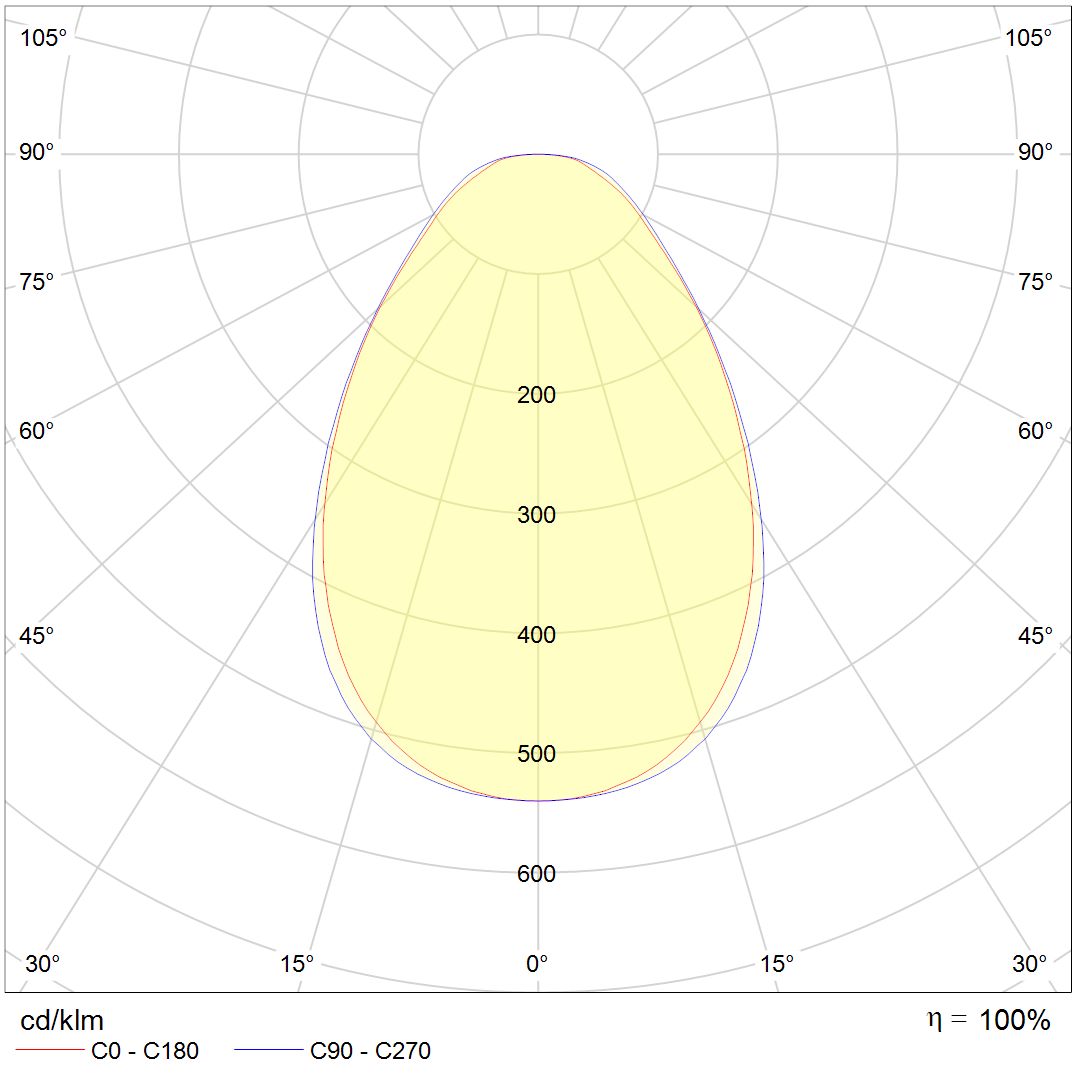

LIGHT BEAM CURVES
LIGHT BEAM CURVES
Frosted (110°)
- Tolerance of luminous flux +/- 10%
- Our products are constantly improved. We reserve the right to make technical changes to the luminaires without prior publication of this information.
