STR 2 N3 has all the features of a modern street luminaire: double-chamber design, easy installation and very good technical performance
| Name | Power [W] | Luminous flux | Protection class | IP | IK | CRI | CCT | Luminous efficiency |
|---|---|---|---|---|---|---|---|---|
| STR 2 N3 | 60 – 100 | 9 600 – 16 000 lm | I | IP66 | IK08 | >80 | 4000 K | up to 160 lm/W |
| Installation: | on pillars Ø60mm, on outriggers Ø60mm, angle adjustment 0° +/-15°, 90° +/-15° |
|---|---|
| Supply voltage: | 230V AC / 50-60 Hz |
| Ambient temperature range: | -30°C … +50°C |
| Lifetime: | 100 000 h |
| Power factor: | >0,9 |
| Surge protection: | >10kV |
| Wind exposed surface: | >0,038m2 |
| Housing: | aluminium, tempered glass |
| Power supply: | possibility of installing a power supply with DALI control |
| Warranty: | 5 years |

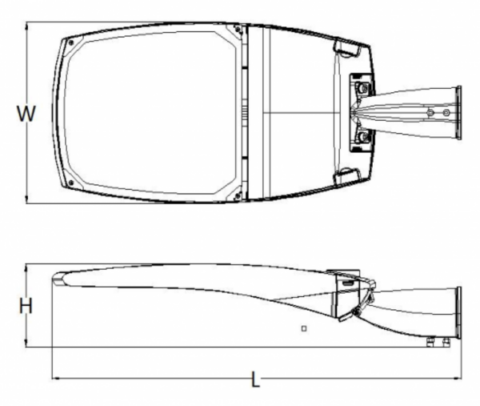

| Name | L | W | H | Weight |
|---|---|---|---|---|
| STR 2 N3 | 645 | 257 | 147 | 4 kg |
I-M
II-M
II-S
