STR 2 N1 is a family of street luminaires that will find a wide range of use in outdoor lighting: city roads, housing estates and car parks. The luminaires are excellent technical parameters and modern design. Double chamber construction additionally protects electronic devices inside the fixture.
| Name | Power [W] | Luminous flux | Protection class | IP | IK | CRI | CCT | Luminous efficiency |
|---|---|---|---|---|---|---|---|---|
| STR 2 N1 | 10 – 40 | 1 600 – 6 400 lm | I | IP66 | IK08 | >80 | 4000 K | 160 lm/W |
| Installation: | on pillars Ø60mm, on outriggers Ø60mm, angle adjustment 0° +/-15°, 90° +/-15° |
|---|---|
| Supply voltage: | 230V AC / 50-60 Hz |
| Ambient temperature range: | -30°C … +50°C |
| Lifetime: | 100 000 h |
| Power factor: | >0,9 |
| Surge protection: | >10kV |
| Wind exposed surface: | >0,022m2 |
| Housing: | aluminium, tempered glass |
| Power supply: | possibility of installing a power supply with DALI control |
| Warranty: | 5 years |

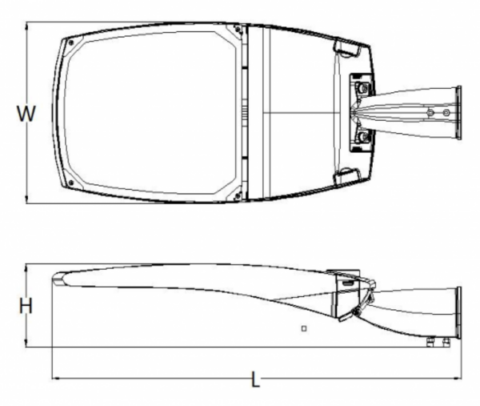

| Name | L | W | H | Weight |
|---|---|---|---|---|
| STR 2 N1 | 555 | 210 | 143 | 3,4 kg |

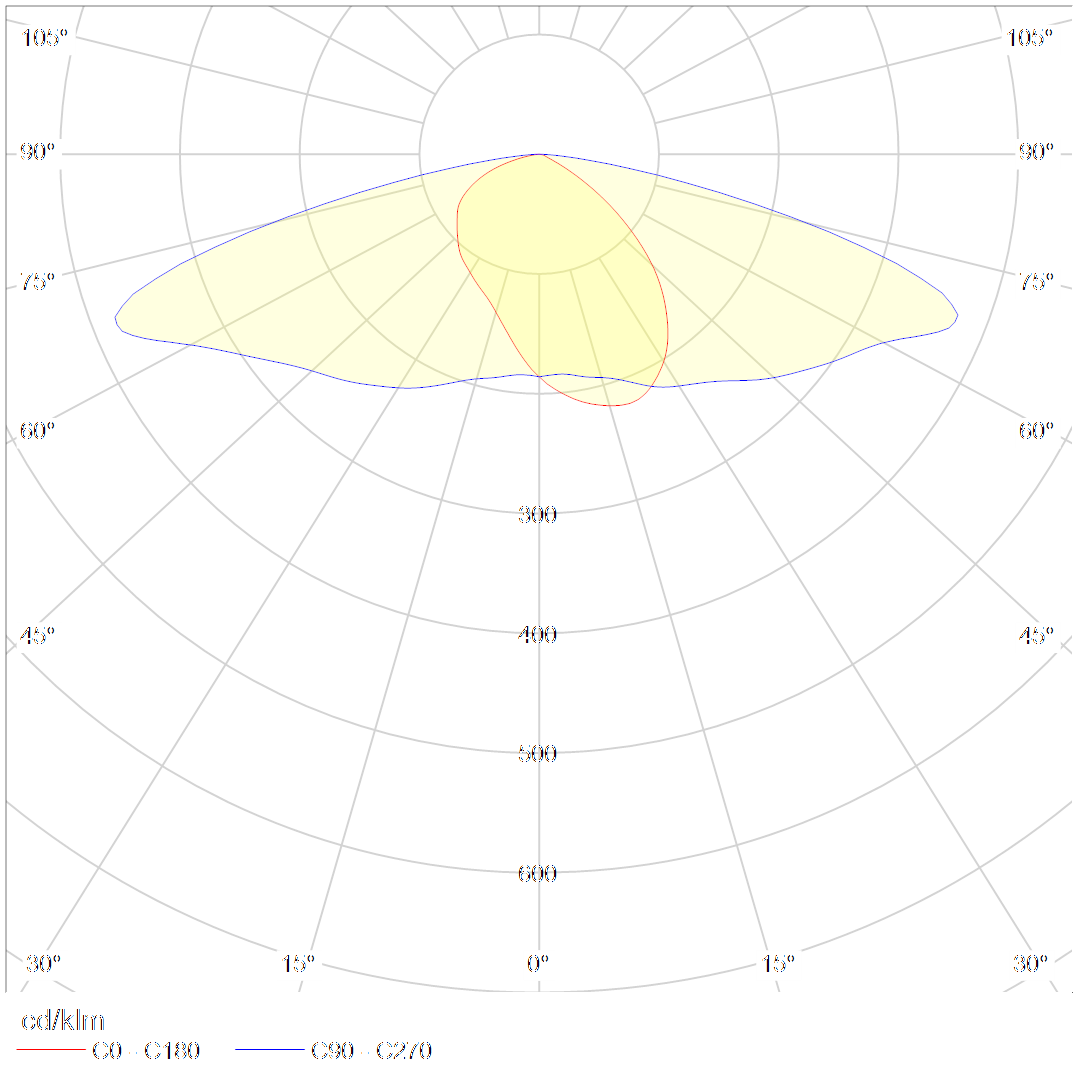

I-M

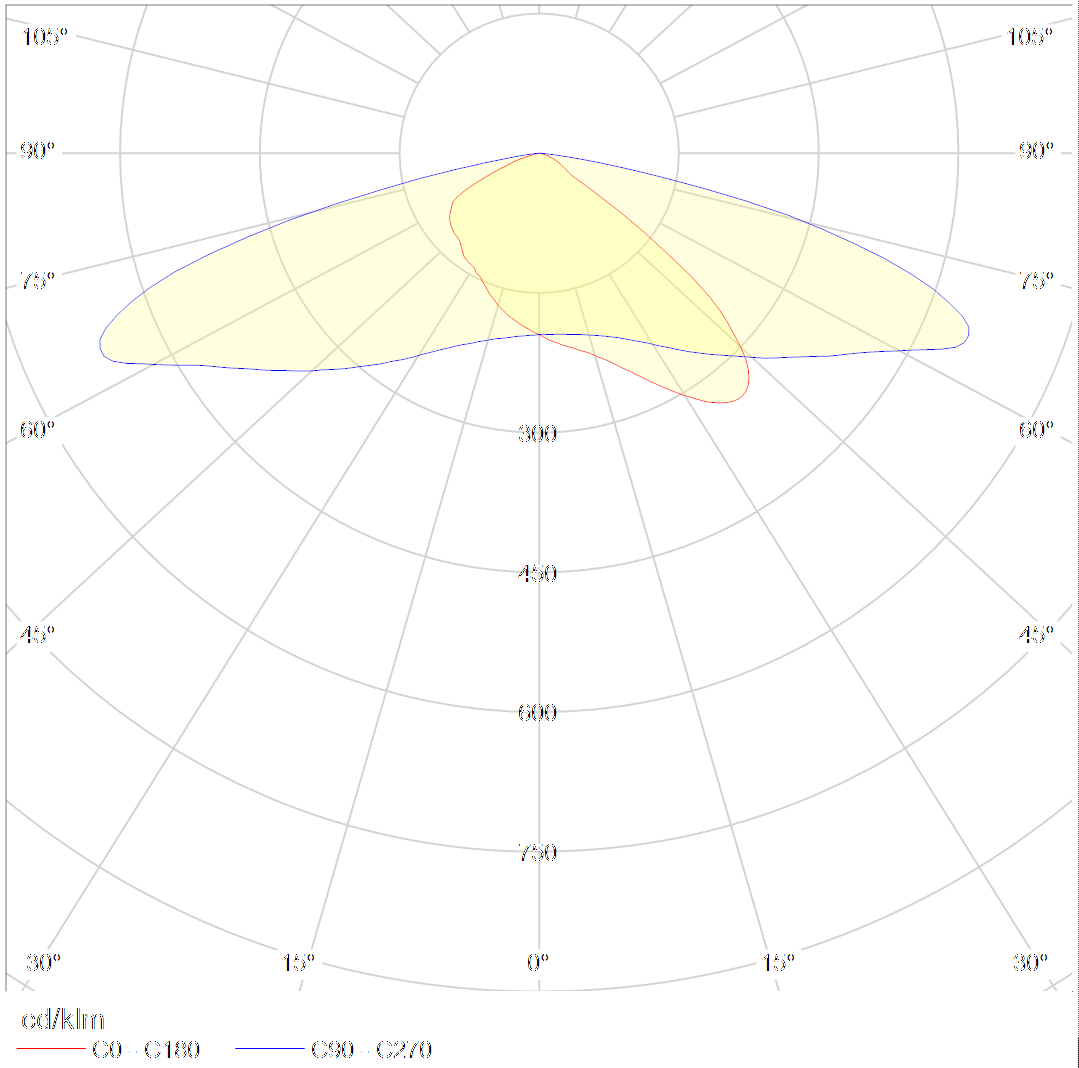

II-M

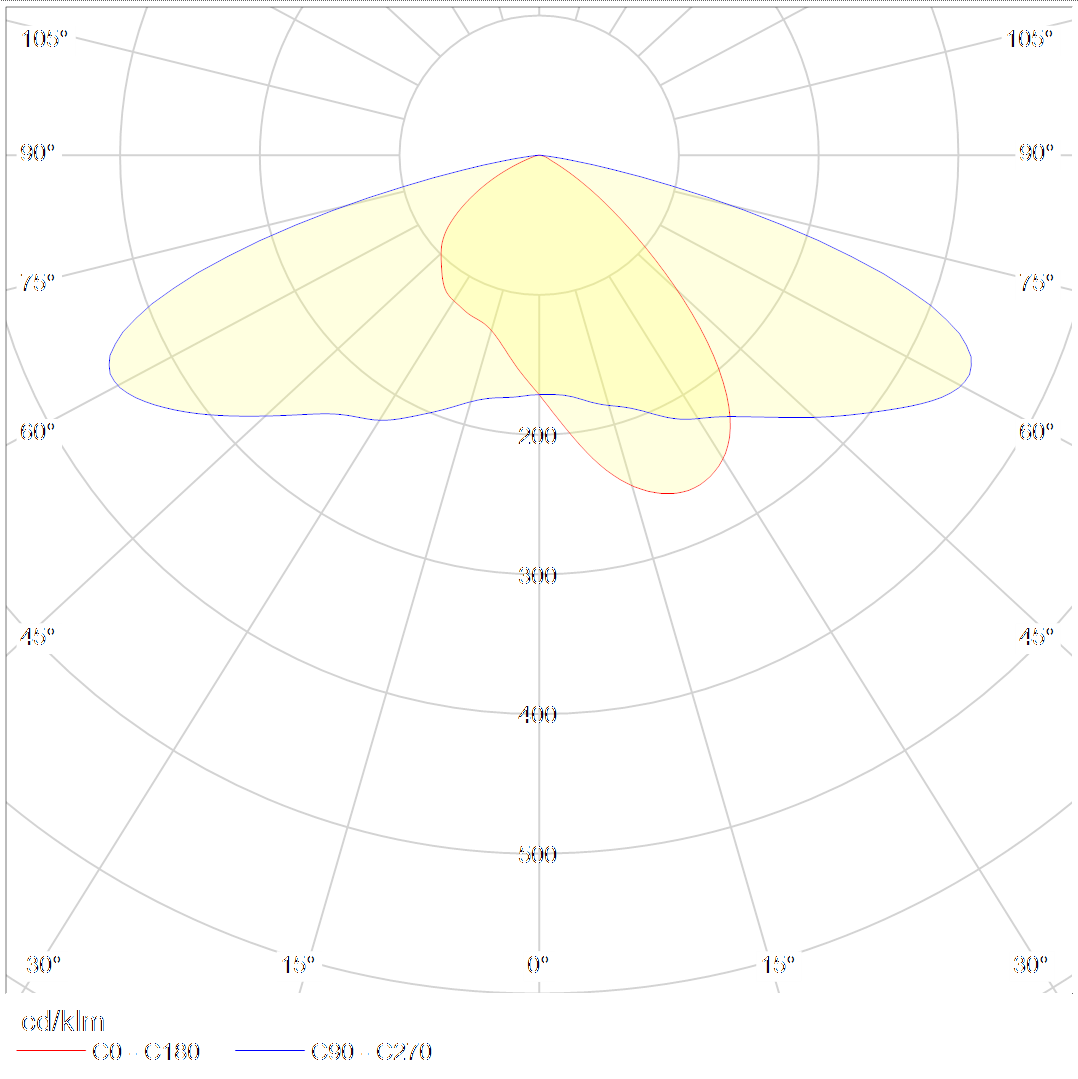

II-S
